Virage Simulation provides a cost-effective, high-fidelity driving simulator solution specifically designed to support the training and evaluation of ready-mix concrete truck operators. Built upon the proven VS600M heavy-vehicle simulator platform, the VS600M-C combines realistic vehicle dynamics, immersive visuals, surround sound, and motion feedback with specialized concrete mixer operating scenarios. The result is a comprehensive training environment where drivers can develop essential vehicle handling, safety, and operational skills without the risks, costs, or logistical constraints of training exclusively in real vehicles.

The VS600M-C utilizes actual truck components and advanced simulation software to accurately reproduce the driving characteristics of a loaded ready-mix concrete mixer. Drivers can practice vehicle control, urban deliveries, job-site access, maneuvering in confined spaces, defensive driving, adverse weather operations, and fuel-efficient driving techniques within a safe and controlled environment. The extensive scenario library supports progressive learning from entry-level operators to experienced professionals.

Virage Simulation provides the expertise, support services, scenario development capabilities, and training solutions necessary to address the specific operational challenges of the ready-mix concrete industry.

RHD vehicles for markets driving on the left-side of the road are available.

Submit a Request

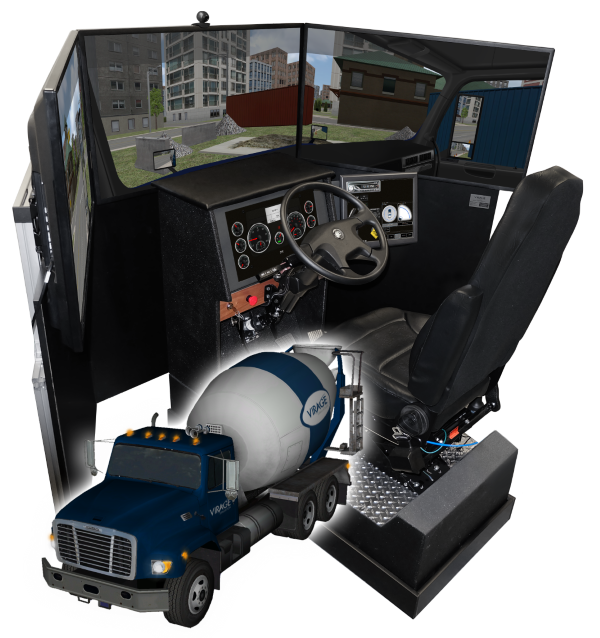

READYMIX CONCRETE MIXER DRIVING SIMULATOR CABIN

The VS600M-C is based on the industry-proven VS600M heavy-vehicle simulator platform and is configured to replicate the operating environment of a modern ready-mix concrete truck. The simulator includes a fully functional pneumatic driver seat, three-point monitored seat belt, truck pedals, adjustable steering column, truck controls, and a comprehensive electronic instrument cluster.

Multiple vehicle configurations can be simulated, including variations in vehicle weight, load conditions, engine performance, transmission types, and road surfaces. The simulator accurately reproduces the effect of a partially loaded or fully loaded concrete mixer, allowing operators to experience realistic vehicle handling characteristics, weight transfer, braking performance, and stability challenges encountered during daily operations.

The simulator supports both automatic and manual transmissions, including Eaton-Fuller non-synchronized gearboxes with realistic shift feel, force feedback, and gearbox behavior. Realistic steering forces and pedal responses are modeled from actual vehicle measurements to provide an authentic training experience.

Submit a Request

READYMIX CONCRETE MIXER DRIVING SIMULATOR VISUAL SYSTEM

The visual system consists of three high-resolution 55-inch LCD displays providing a 180-degree forward field of view, supplemented by fully simulated mirrors and optional rear-view displays. The system generates high-quality 3840 × 2160 pixel visuals with stable real-time rendering, anti-aliasing, and anisotropic filtering for exceptional image quality and depth perception.

The visual environment allows trainees to operate in a wide range of driving conditions including:

• Urban streets and congested downtown areas
• Residential neighborhoods
• Highways and expressways
• Industrial zones
• Construction sites
• Rural roads
• Mountainous terrain
• Winter driving conditions
• Rain, fog, ice, snow, and low-visibility environments

Specialized ready-mix concrete delivery scenarios can include navigating tight job-site entrances, operating around workers and equipment, negotiating confined work zones, backing into delivery locations, and managing vehicle positioning at construction sites. These scenarios help operators develop situational awareness and reduce the risk of costly incidents.

Submit a Request

READYMIX CONCRETE MIXER DRIVING SIMULATOR SOUND SYSTEM

The VS600M-C is equipped with a high-fidelity surround sound system that delivers realistic directional audio cues synchronized with vehicle operation and the driving environment. Engine sounds, transmission noises, tire-to-road interactions, braking sounds, and environmental effects vary dynamically according to vehicle speed, load, and road conditions.

Additional realism is provided through the simulation of surrounding traffic and equipment, including the Doppler effect for passing vehicles. Audio-based instructional cues, coaching messages, and navigational guidance can also be incorporated into training exercises.

Submit a Request

READYMIX CONCRETE MIXER DRIVING SIMULATOR MOTION SYSTEM

The VS600M-C includes a compact, high-performance three-axis motion and vibration platform designed to maximize driver immersion and training effectiveness. Motion cues reproduce vehicle acceleration, deceleration, cornering forces, pavement irregularities, potholes, curbs, and other surface conditions commonly encountered by ready-mix truck operators.

Engine vibration varies according to RPM while road-surface vibrations change with vehicle speed and terrain. These cues are transmitted through the seat, steering wheel, and simulator platform, creating a realistic sensation of operating a loaded heavy vehicle.

The motion system also assists drivers in understanding weight transfer, braking behavior, and vehicle stability, helping reinforce safe operating habits while reducing simulator adaptation effects.

Submit a Request

READYMIX CONCRETE MIXER DRIVING SIMULATOR TRAINING PEDAGOGY

Comprehensive Learning

The VS600M-C training curriculum is designed to develop the knowledge, skills, and judgment required for safe and efficient operation of ready-mix concrete vehicles. Scenario-based lessons address:

• Basic vehicle operation
• Vehicle familiarization
• Defensive driving
• Hazard perception
• Urban and residential deliveries
• Construction site access and egress
• Backing and maneuvering in confined areas
• Mirror usage and space management
• Adverse weather operations
• Rollover prevention
• Fuel-efficient driving
• Driver evaluation and assessment

Training exercises progressively increase in complexity, ensuring the driver first masters individual skills before integrating them into more demanding operational situations. Each scenario is built upon established pedagogical principles and real-world industry requirements.

Training Control

The instructor workstation provides complete control over the training environment. Instructors can select vehicle configurations, adjust weather and traffic density, introduce hazards, reposition objects, and create a wide range of operational challenges with only a few clicks.

Comprehensive performance monitoring and evaluation tools allow instructors to objectively assess driver performance, identify training needs, and provide meaningful coaching based on measurable data. Recording and replay capabilities support effective debriefing and performance improvement.

Submit a Request

READYMIX CONCRETE MIXER DRIVING SIMULATOR INDUSTRY BENEFITS

The VS600M-C enables organizations to:

• Improve driver safety and confidence
• Reduce preventable collisions and incidents
• Standardize driver training and evaluation
• Minimize vehicle wear and fuel consumption
• Safely train drivers in high-risk situations
• Accelerate skill development
• Improve operational efficiency
• Support ongoing professional driver development

For more details: Info@VirageSimulation.com
